Understanding different grades of UHMWPE

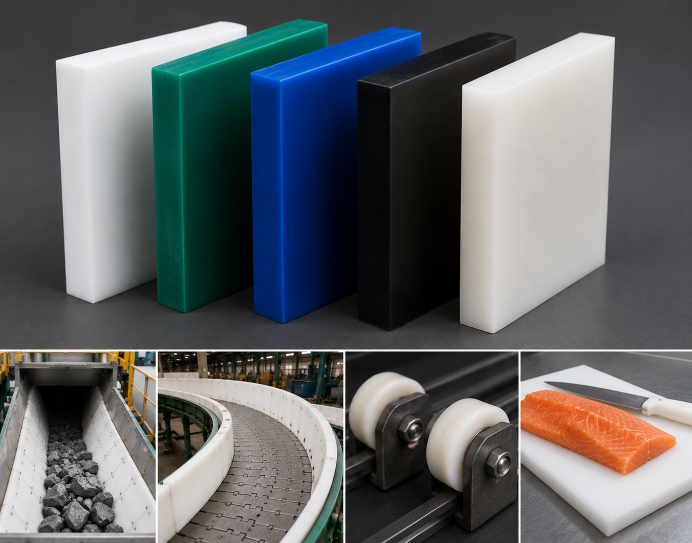

UHMWPE grades are categorized primarily by their molecular weight and the addition of specific lubricants or stabilizers to enhance properties like wear resistance, UV stability, and coefficient of friction. Understanding these grades is essential for selecting the right uhmwpe sheet for industrial applications ranging from food processing to heavy-duty mining.

In this comprehensive guide, we will explore the various classifications of this versatile material. By examining the differences between virgin, recycled, and specialized modified grades, industrial buyers can make informed decisions that optimize the lifespan of their equipment and reduce maintenance costs.

Table of Contents

• Understanding the Fundamentals of UHMWPE Grades

• Virgin UHMWPE vs. Recycled Grades

• High Performance Modified UHMWPE Grades

• The Role of Glass-Filled and Ceramic-Filled UHMWPE

• Borated UHMWPE for Radiation Shielding

• Food Grade and Medical Grade UHMWPE Standards

• Comparing Molecular Weight Across Different Grades

• Conclusion

Understanding the Fundamentals of UHMWPE Grades

The performance of a uhmwpe sheet is fundamentally determined by its molecular weight, which influences its ability to resist abrasion, impact, and chemical degradation.

UHMWPE is defined by its incredibly long polymer chains. Unlike standard high-density polyethylene (HDPE), which has a molecular weight typically between 100,000 and 500,000, UHMWPE starts at 3.1 million and can exceed 10 million g/mol. This characteristic is the primary differentiator between grades. As the molecular weight increases, the material becomes more difficult to process but gains significantly in its ability to withstand sliding abrasion and energy absorption.

The manufacturing process usually involves compression molding or ram extrusion because the melt viscosity of the material is so high that it does not flow like typical plastics. This means that "grades" are often defined by the specific resin quality used during these processes. Engineers must balance the need for high wear resistance with the physical limitations of the fabrication method.

In industrial settings, identifying the correct grade involves looking at the specific requirements of the application. For instance, in heavy-duty conveyor systems, the focus is on the coefficient of friction and wear life. In these scenarios, utilizing a high-performance uhmwpe sheet ensures that the components do not fail prematurely under constant mechanical stress.

Virgin UHMWPE vs. Recycled Grades

Virgin UHMWPE consists of 100% pure resin without any reclaimed material, offering the highest level of mechanical consistency and impact strength compared to reprocessed or recycled grades.

Virgin grades are the gold standard for demanding applications. Because they contain no recycled content, the polymer chains remain unbroken and uncontaminated. This purity results in superior impact strength and better performance in cryogenic temperatures. Virgin material is typically white or translucent unless color pigments are added, and it meets all regulatory requirements for direct contact in sensitive industries.

Recycled or "reprocessed" grades are manufactured by blending virgin resin with reclaimed UHMWPE material. While this makes the product more cost-effective and environmentally friendly, it does lead to a slight reduction in physical properties. Reprocessed sheets are usually black or mottled green and are ideal for applications where the extreme impact resistance of virgin material is not strictly necessary but low friction is still required.

When choosing between these two, consider the following factors:

1. Impact Requirements: Virgin material handles shock loads much better without cracking.

2. Surface Finish: Virgin grades provide a smoother, more consistent surface for sliding applications.

3. Budget Constraints: Reprocessed material is excellent for wear strips and guide rails where cost-efficiency is a priority.

High Performance Modified UHMWPE Grades

Modified UHMWPE grades incorporate additives such as molybdenum disulfide, graphite, or UV stabilizers to enhance specific environmental and mechanical resistances.

Standard UHMWPE is already highly resistant to wear, but certain environments require even greater performance. For example, self-lubricating grades are infused with oil or dry lubricants like MoS2. These additives further reduce the coefficient of friction, making the material ideal for high-speed bottling lines or packaging machinery where external lubrication is not possible.

Another common modification is the addition of carbon black or other conductive agents to create anti-static or ESD (Electrostatic Dissipative) grades. These are essential in grain handling or electronics manufacturing to prevent the buildup of static electricity, which could lead to dust explosions or damage to sensitive components. UV-stabilized grades are also available for outdoor applications, preventing the material from becoming brittle when exposed to prolonged sunlight.

For heavy-duty bulk material handling, such as lining chutes and silos, specialized grades are used to prevent sticking. Implementing a high-quality Hopper Liner made from modified polyethylene can significantly improve the flow of wet or cohesive materials, preventing costly downtime caused by blockages.

The Role of Glass-Filled and Ceramic-Filled UHMWPE

Glass-filled and ceramic-filled UHMWPE grades are engineered to provide enhanced dimensional stability and superior resistance to sharp-edge abrasion.

While standard UHMWPE is excellent for sliding abrasion, it can struggle with "impingement" abrasion or environments where very sharp particles are present. By adding glass beads or ceramic powder, manufacturers create a hybrid material that maintains the toughness of the plastic while gaining the surface hardness of the filler. These grades are significantly stiffer and exhibit less "creep" or cold flow under heavy loads.

Ceramic-filled versions are particularly popular in the pulp and paper industry for dewatering elements and suction box covers. The ceramic particles protect the polymer matrix from the abrasive nature of paper pulp and high-speed wires. Glass-filled versions are often used in structural components where the material must maintain its shape under constant pressure or varying temperatures.

Borated UHMWPE for Radiation Shielding

Borated UHMWPE is a specialized grade containing 5% or 10% boron by weight, specifically designed to absorb thermal neutrons in nuclear and medical radiation environments.

The high hydrogen content of the polyethylene base material is effective at slowing down fast neutrons, while the added boron captures the resulting thermal neutrons. This combination makes it one of the most effective lightweight shielding materials for nuclear power plants, linear accelerators in hospitals, and research facilities.

The material is typically produced in thick sheets or bricks that can be easily machined into complex shielding components. Unlike lead or concrete, borated polyethylene is relatively easy to handle and does not produce secondary gamma radiation to the same extent as some heavy metals. It provides a consistent density and shielding performance across the entire surface of the sheet.

1. Nuclear Power Plants: Used for shielding doors and inspection ports.

2. Medical Facilities: Essential for walls in oncology treatment rooms.

3. Transportation: Used in containers for radioactive isotope transport.

Food Grade and Medical Grade UHMWPE Standards

Food and medical grades of UHMWPE are manufactured under strict purity controls to ensure they meet FDA, USDA, and ISO 13485 standards for safety and biocompatibility.

Food-grade UHMWPE is widely used in the food processing and pharmaceutical industries because it is non-toxic, non-staining, and does not absorb odors or moisture. It can withstand rigorous cleaning cycles with harsh chemicals and steam. Because it is highly resistant to bacterial growth, it is the preferred material for cutting boards, wear plates on meat processing lines, and filling machine components.

Medical grade UHMWPE, often referred to as UHMWPE-GUR, undergoes even more stringent testing. It is the primary material used for orthopedic implants, such as hip and knee replacements. The material is sterilized using gamma radiation or ethylene oxide. In these applications, the wear resistance is critical, as any debris generated by the moving joint could lead to inflammation or implant failure.

For industrial food production lines, using a certified uhmwpe sheet ensures that the facility remains compliant with health and safety regulations while maintaining high throughput. These sheets offer a reliable surface that minimizes product contamination.

Comparing Molecular Weight Across Different Grades

Comparing the molecular weight across different grades reveals that higher g/mol values directly correlate with increased energy absorption and longer wear life in abrasive environments.

Molecular weight is typically measured by viscometry or light scattering. A "standard" industrial grade might hover around 3.5 to 4 million g/mol, which is sufficient for most guide rails and bushings. However, "premium" or "ultra-high" grades reach 7 million to 9 million g/mol. This increase in chain length leads to a more entangled molecular structure, which is much harder for abrasive particles to "tear" or remove.

In practical terms, a higher molecular weight grade will last significantly longer in a high-wear application like a mine tailings pipe or a coal chute. While the initial cost of a 9 million molecular weight sheet is higher than a 4 million weight sheet, the total cost of ownership is lower due to the extended replacement intervals.

For those managing bulk material handling systems, upgrading to a high-grade Hopper Liner allows for the handling of more aggressive materials without damaging the underlying steel structure. The increased molecular weight provides a "cushioning" effect that protects the system from both impact and friction.
