How thick is the uhmwpe sheet available?

UHMWPE sheet thickness typically ranges from 1.5mm (1/16 inch) to 200mm (8 inches), though standard commercial stock most frequently falls between 6mm and 100mm. For specialized industrial applications such as heavy-duty liners or structural components, custom-pressed blocks can reach thicknesses of up to 250mm or more, depending on the manufacturing process used, such as compression molding or RAM extrusion.

This guide provides an exhaustive look into the dimensional possibilities of uhmwpe sheet products. We will explore how thickness influences performance, the standard sizes available in the global market, and how to select the right gauge for applications ranging from food processing to mining. By understanding the relationship between thickness, wear resistance, and load-bearing capacity, you can optimize your material selection for maximum ROI.

Article Summary Table

Standard Thickness Ranges for UHMWPE Sheets

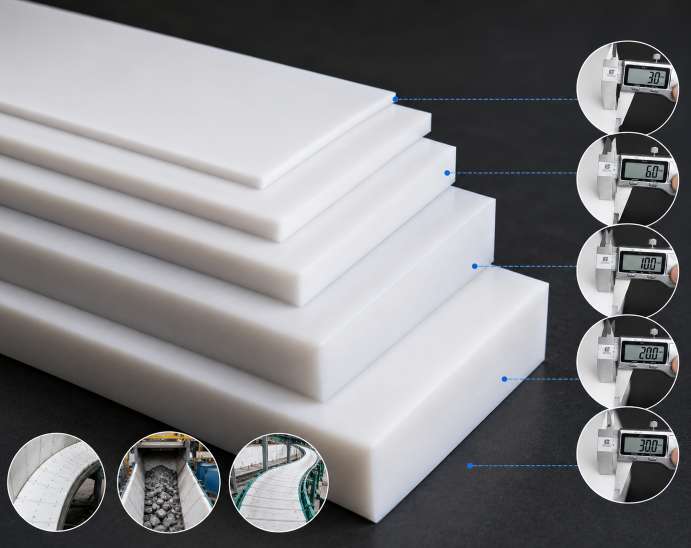

The standard thickness for a commercially available uhmwpe sheet typically starts at 1.5mm for thin cladding and scales up to 150mm for standard industrial stock, with the most common increments being 6mm, 10mm, 12.5mm, 20mm, and 50mm.

The versatility of uhmwpe sheet is largely due to the wide variety of dimensions offered by manufacturers. In the metric system, users often find sheets starting at very thin gauges used for tape or gaskets, moving into the "standard" range of 10mm to 50mm which serves the bulk of the conveyor and packaging industry. For those requiring heavy-duty protection, plates exceeding 100mm are utilized as base materials for CNC machined parts.

When looking at imperial measurements, the scale usually begins at 1/16" and progresses to 4" or 6" plates. Because UHMWPE has a very high molecular weight (typically between 3 to 9 million g/mol), the material becomes increasingly difficult to process as it gets thicker. This is why thicker sections are almost exclusively produced via compression molding rather than extrusion, ensuring that the internal stress of the uhmwpe sheet remains low and the material stays flat during machining.

For high-performance requirements, many engineers opt for premium UHMWPE 9000 grades which maintain consistent physical properties even in ultra-thick cross-sections. This consistency is vital for large-scale industrial components where a weak point in the center of a thick block could lead to premature failure.

Manufacturing Processes and Their Impact on Thickness

The maximum thickness of an uhmwpe sheet is primarily determined by the manufacturing method, with compression molding allowing for thicknesses up to 250mm, while RAM extrusion is typically limited to thinner profiles and continuous wear strips under 30mm.

The production of uhmwpe sheet is unique compared to other plastics like HDPE or PVC. Because UHMWPE does not "flow" in a traditional sense when melted (it has an extremely high melt viscosity), it requires intense pressure and heat to fuse the powder particles together. Compression molding involves placing the powder into a large mold and pressing it under massive hydraulic force. This method is the "gold standard" for thick sheets because it allows for slow heating and cooling cycles, which minimizes internal stress and prevents warping in sheets that are 50mm or 100mm thick.

Extrusion, specifically RAM extrusion, is used for thinner, continuous profiles. While efficient, it is generally restricted in terms of width and thickness. If you require a very long, thin strip of uhmwpe sheet for a conveyor guide, extrusion is the answer. However, for a 4x8 foot industrial plate that is 2 inches thick, compression molding is the only viable path. The cooling phase for a thick molded sheet can take several hours, which is necessary to ensure the molecular chains settle uniformly across the entire thickness.

Understanding these processes helps in selecting the right material for precision parts. A compression-molded UHMWPE equivalent material is far more stable for CNC milling than an extruded one, as it won't "spring" or deform once the outer skin is removed. This stability is a direct result of the controlled cooling and pressure applied during the molding of thick sections.

Choosing the Right Thickness for Wear Liners

When selecting the thickness of an uhmwpe sheet for wear liner applications, the primary considerations are the particle size of the material being handled, the drop height, and the desired service life, with 12.5mm to 20mm being the industry standard for most bulk handling chutes.

In the world of bulk material handling, thickness equals longevity. A thin uhmwpe sheet might provide excellent friction reduction, but it lacks the "sacrificial volume" needed to withstand years of abrasive rock or coal flow. For example, in a hopper handling fine grain, a 10mm sheet may last five years. However, in a mining chute handling heavy ores with a 2-meter drop height, a 25mm or 30mm sheet is required to absorb the kinetic energy of the impact without cracking or wearing through to the substrate too quickly.

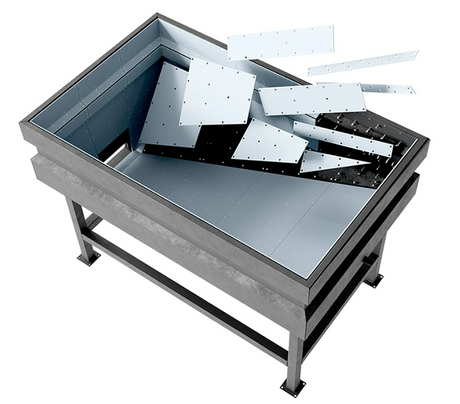

Impact resistance is a function of both the material's inherent toughness and its thickness. A thicker uhmwpe sheet can distribute the force of an impact over a larger area, protecting the underlying steel structure. This is particularly important when installing a high-performance hopper liner in an environment with high vibration. The thickness provides the mechanical rigidity necessary to keep fasteners secure and prevent the liner from buckling under the weight of the load.

Key Factors for Liner Thickness Selection:

1. Abrasion Levels: High-silica materials require thicker sheets to provide a longer wear life before replacement is necessary.

2. Fastener Integration: If you are using weld-on washers or capped bolts, the uhmwpe sheet must be thick enough to allow for counter-boring so the bolt head stays below the wear surface.

3. Weight Constraints: While thicker is often better for wear, it adds weight to the structure. Balancing the thickness against the load-bearing capacity of the hopper is essential.

Impact of Thickness on Mechanical Properties

While the base polymer properties remain the same, the overall mechanical performance of an uhmwpe sheet changes with thickness due to variations in load distribution, thermal insulation, and structural rigidity.

As an uhmwpe sheet increases in thickness, its ability to function as a structural component improves. Thin sheets are flexible and conform to the shape of the surface they are mounted to, making them ideal for lining curved bins. Conversely, thick plates (above 40mm) act as rigid bodies. This rigidity is crucial for applications like outrigger pads for cranes, where a 100mm thick uhmwpe sheet must support tens of tons of pressure without significant deflection or "mushrooming."

Thermal properties also vary with thickness. UHMWPE is an excellent thermal insulator. A thick block will take much longer to reach thermal equilibrium than a thin sheet. This is a double-edged sword; while it protects the substrate from temperature spikes, it also means that the center of a thick block may retain heat longer during machining, which can lead to dimensional inaccuracies if not managed with proper cooling. The coefficient of linear thermal expansion must be carefully calculated, especially for long runs of thick uhmwpe sheet in outdoor environments.

Furthermore, the load-bearing capacity is directly proportional to the cross-sectional area. In heavy-duty engineering, using a durable chute or hopper liner with extra thickness allows for the distribution of point loads, preventing the deformation of the underlying metal. This mechanical advantage is why UHMWPE has replaced wood and steel in many maritime and heavy industrial bearing applications.

Custom Fabrication and Tolerance Standards

The tolerance for uhmwpe sheet thickness is generally governed by international standards like DIN ISO 3302-1, with standard industrial sheets typically having a thickness tolerance of +/- 2% to 5% depending on the manufacturing method.

Precision is key when an uhmwpe sheet is intended for secondary fabrication. When a manufacturer produces a 50mm plate, there will naturally be slight variations across the surface due to the cooling process of the polymer. For high-precision applications, such as semiconductor manufacturing equipment or medical grade components, these sheets can be "planed" or "sanded" to achieve much tighter tolerances. A planed sheet ensures that the thickness is uniform within a fraction of a millimeter across the entire 2000mm x 1000mm surface.

Machining thick uhmwpe sheet requires specific expertise. Because the material is soft compared to metals, it tends to "creep" or move under the heat of a cutting tool. When working with 100mm thick blocks, fabricators must use sharp, high-speed steel or carbide tools with large chip clearances. If the thickness is not consistent from the start, the final machined part may have internal stresses that cause it to bow or twist over time.

Common Fabrication Steps for Thick Sheets:

1. Planing/Milling: Leveling the surface of a thick uhmwpe sheet to ensure perfect parallelism.

2. Waterjet Cutting: Using high-pressure water to cut complex shapes out of sheets up to 150mm thick without introducing heat.

3. Drilling and Tapping: Thick sections allow for deep threads, making it possible to bolt components directly into the UHMWPE without nuts.

Applications Across Industries Based on Thickness

Applications for uhmwpe sheet are diverse and strictly dictated by thickness, ranging from 2mm strips in food conveyor systems to 200mm blocks used as fenders in international shipping ports.

In the food and beverage industry, thin uhmwpe sheet (3mm to 6mm) is the standard. It is used for wear strips under modular belts and as dead plates where products slide between conveyors. The focus here is on the low coefficient of friction and FDA compliance rather than impact resistance. The thinness allows the material to be easily replaced and cleaned, ensuring hygiene standards are met without significant downtime.

In contrast, the mining and maritime industries demand the thickest available uhmwpe sheet. Port authorities use massive blocks of UHMWPE as facing for dock fenders. These blocks must absorb the energy of a 100,000-ton vessel docking. A thickness of 150mm to 200mm is common here, often reinforced with internal steel plates. Similarly, in the mining sector, the use of thick UHMWPE 9000 equivalent plates ensures that the equipment can handle the most aggressive abrasive environments for years.

Industry-Specific Thickness Usage:

• Food Processing: 3mm to 10mm for cutting boards and guide rails.

• Agriculture: 8mm to 15mm for seeders and harvester liners.

• Mining/Construction: 20mm to 50mm for truck bed liners and chute protection.

• Marine: 50mm to 200mm for pile guards and fender facings.

• Material Handling: 10mm to 25mm for spiral chutes and baggage handling systems.
