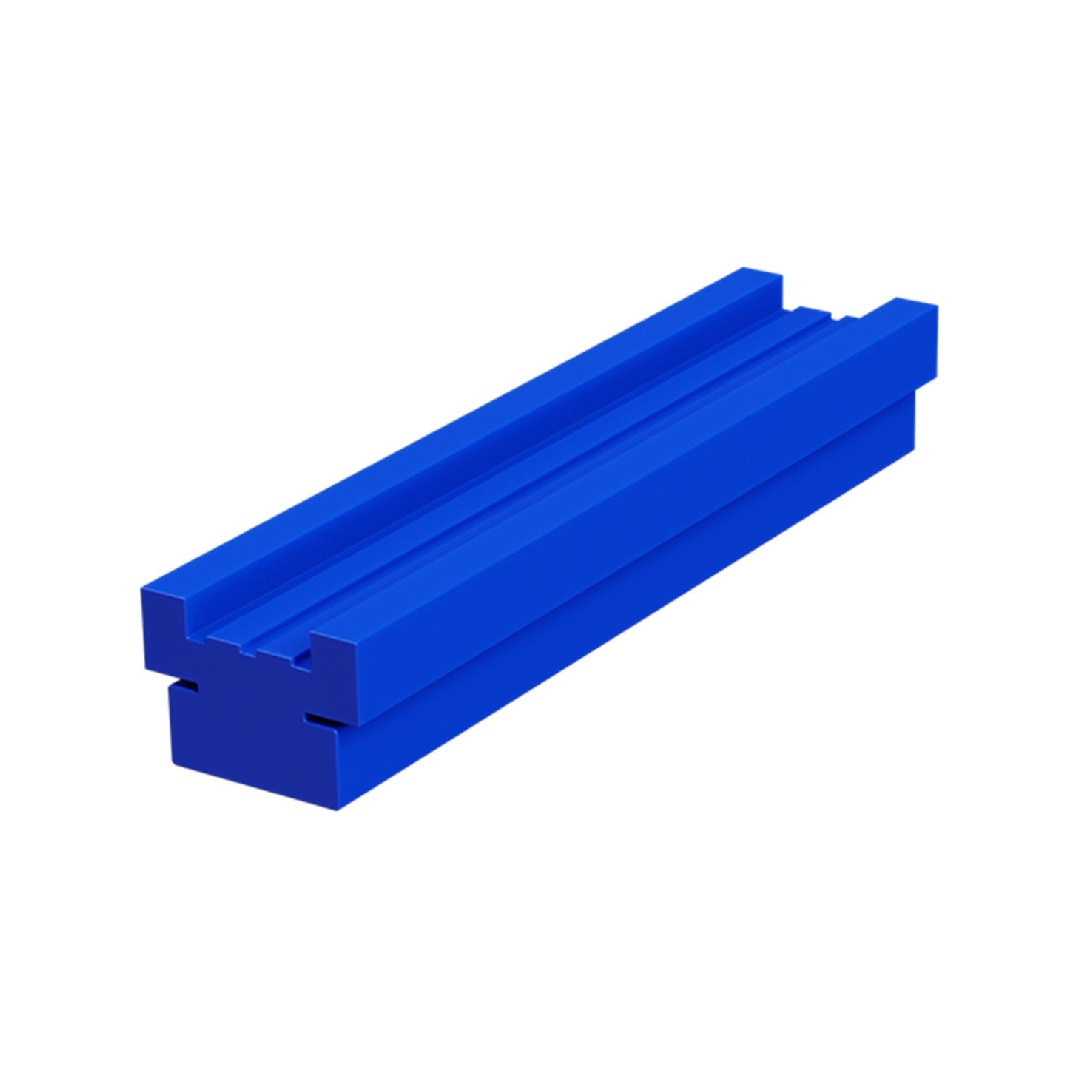

We select the cross-section according to the type of conveyor and attachment to the metal frame or aluminum profile. Options include concealed fasteners, chamfers, grooves for chains/belts, as well as inserts on a steel load-bearing profile for heavy-duty applications.
·Type T1, T2, T1C – T-shaped guides for flat chains and modular belts; the C version allows for quick insertion/replacement of the guide.
·Type E1, E2, EC2 – E-profiles for roller and plate chains; variants differ in flange depth and sidewall configuration for motion stabilization.
·Type U, UC – U-shaped channels for stabilizing chains/belts along the edge; the C version features concealed fasteners or snap-in mechanisms.
·Type V, VC – V-profiles for guides with V-grooved rollers/wheels, providing precise alignment on straight and curved sections.
·Type PC – flat guides with a central groove for fastening or chain centering.
If a different cross-section is required, we can manufacture profiles according to your drawings: we will machine grooves, radii, counterbores, longitudinal channels, and supply complete kits with metal load-bearing components and fasteners.
 |  |  |  |
 |  |  |  |
