UHMWPE is an odorless, tasteless, and nontoxic engineering thermoplastic that boasts the highest impact strength of any thermoplastic currently made. Its defining characteristic is its molecular weight, which typically ranges between 3.5 and 7.5 million amu, providing it with exceptional abrasion resistance, a low coefficient of friction, and superior chemical resistance.
Understanding the nuances of this material is essential for engineers and procurement specialists looking to optimize performance in harsh environments. This guide provides a comprehensive technical breakdown of UHMWPE, exploring its structural uniqueness, commercial grades, and practical applications in demanding industrial settings.
What makes UHMWPE’s molecular structure fundamentally unique?
What is the practical meaning of ‘molecular weight’?
Why is UHMWPE more abrasion-resistant than steel?
How does UHMWPE compare to other common engineering plastics?
What are the main commercial grades of UHMWPE material?
What is the purpose of cross-linking in UHMWPE?
What are the most effective methods for joining UHMWPE?
What surface finishes are achievable and how?
The fundamental uniqueness of UHMWPE lies in its extremely long polyethylene chains, which are significantly longer than those found in standard High-Density Polyethylene (HDPE), leading to a high degree of chain entanglement that effectively dissipates energy and prevents crack propagation.
At the microscopic level, UHMWPE consists of extremely long chains of polyethylene. While standard HDPE has a molecular weight between 100,000 and 400,000 amu, UHMWPE reaches into the millions. These long chains do not exist in a vacuum; they overlap and entangle like a dense bowl of spaghetti. This entanglement is the secret to its "toughness." When an object impacts an uhmwpe sheet, the energy is not concentrated at a single point but is distributed across these massive interconnected molecular networks.
Furthermore, the lack of side-chain branching allows these molecules to pack closely together in crystalline regions, though the sheer length of the chains prevents them from becoming entirely crystalline. This balance between amorphous and crystalline states ensures the material remains flexible enough to resist shattering while being rigid enough to maintain its shape under load. The lack of polar groups in its chemical structure also means it does not absorb water, contributing to its dimensional stability in submerged or humid environments.
Because the molecules are so long, they cannot be processed using standard injection molding techniques, as the melt viscosity is too high. Instead, the structure requires compression molding or ram extrusion. This processing constraint is a direct result of the structural integrity that makes the material so valuable in the first place.
In practical terms, molecular weight refers to the average mass of the individual polymer chains within the material, where a higher weight directly translates to increased abrasion resistance, impact strength, and the ability to withstand cyclic loading without fatigue.
For the end-user, molecular weight is the primary indicator of how long a component will last in a high-wear environment. As the molecular weight increases, the mechanical properties of the uhmwpe sheet improve significantly. For example, a sheet with 9 million amu will offer far better wear life than one with 3 million amu when used as a liner for abrasive ores or grains. This is why high-performance UHMWPE 9000 equivalent materials are often specified for heavy-duty industrial components.
The "weight" specifically affects the "intrinsic viscosity" of the polymer. In a practical industrial setting, this means:
Increased Toughness: Higher weight means the material can absorb more energy before failing.
Reduced Wear: The chains are harder to "tear away" from the surface during friction.
Chemical Inertness: Longer chains provide fewer "ends" for chemical attack to begin.
However, there is a point of diminishing returns. Once the molecular weight exceeds 7 to 9 million, the material becomes increasingly difficult to process into usable shapes. Therefore, the practical meaning for an engineer is finding the "sweet spot" where the molecular weight provides maximum durability while still allowing the material to be machined into functional parts.

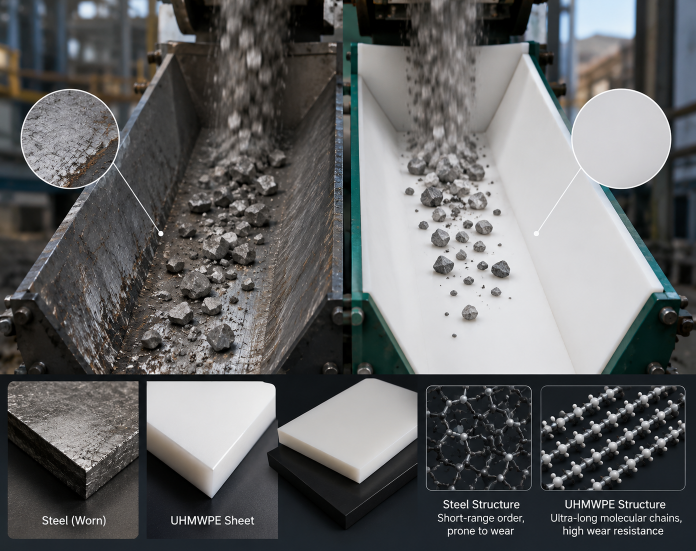

UHMWPE is more abrasion-resistant than steel because it possesses a unique self-lubricating surface and a high degree of elasticity, allowing it to "yield" to abrasive particles rather than being scratched or eroded by them like a rigid metal surface.
While it might seem counterintuitive that a plastic can outlast steel, the physics of abrasion explain why. When a hard particle (like sand or gravel) strikes a steel surface, the steel's rigidity leads to micro-cracking or "plowing," where small amounts of metal are scraped away. In contrast, an uhmwpe sheet is visco-elastic. When an abrasive particle hits the surface, the material deforms slightly and then snaps back into place, effectively "bouncing" the abrasive particle away without losing material.
Furthermore, the coefficient of friction for UHMWPE is comparable to that of PTFE (Teflon), but with much higher mechanical strength. This low friction reduces the heat generated during sliding contact, which is often a primary cause of wear in metal-on-metal or metal-on-plastic systems. In wet abrasion tests (Sand Slurry Test), UHMWPE often demonstrates a wear rate that is 6 to 10 times lower than that of carbon steel.
This makes it the ideal choice for heavy-duty liners. For instance, installing a high-performance hopper liner made of UHMWPE can prevent "bridging" and "ratholing" of materials while protecting the underlying steel structure from erosion and corrosion simultaneously.
Compared to other engineering plastics, UHMWPE stands out for its superior impact strength and lower coefficient of friction, although it has a lower heat deflection temperature than materials like PTFE or PEEK.
To choose the right material, one must look at the data. Below is a comparative analysis of UHMWPE versus other common polymers used in industrial manufacturing:
Property | UHMWPE | PTFE (Teflon) | Nylon 6 | HDPE |
Abrasion Resistance | Excellent (Best) | Moderate | Good | Fair |
Impact Strength | Highest | Moderate | Moderate | High |
Coeff. of Friction | 0.10 - 0.15 | 0.05 - 0.10 | 0.25 - 0.35 | 0.20 - 0.25 |
Water Absorption | <0.01% | <0.01% | 1.5 - 8.0% | <0.01% |
Max Operating Temp | 80°C | 260°C | 100°C | 70°C |
While Nylon is strong, it absorbs water and swells, making it poor for wet environments. PTFE has a lower friction coefficient but is "soft" and prone to cold flow (deformation under load). UHMWPE provides the best balance for mechanical "workhorse" applications. It is particularly effective when used as an industrial hopper liner solution because it combines moisture resistance with the ability to withstand the constant impact of falling bulk solids.
Choosing between these materials often depends on the temperature of the environment. If the application is below 80°C and involves heavy wear, an uhmwpe sheet is almost always the superior economic and technical choice.
The main commercial grades of UHMWPE include Virgin grade (pure), Regenerated/Reprocessed grade (blended with recycled material), and Specialty Filled grades (containing additives like glass, MoS2, or ceramic) designed to enhance specific properties like UV resistance or conductivity.
Virgin Grade UHMWPE: This is 100% pure material with no recycled content. It is used in food processing (FDA compliant) and medical applications. It offers the most consistent mechanical properties and the highest impact strength.
Reprocessed (Regen) Grade: A blend of virgin and recycled UHMWPE. While slightly less expensive, it maintains about 80-90% of the performance of virgin material. It is frequently used for heavy-duty UHMWPE 9000 sheets in non-food applications like dock bumpers or conveyor wear strips.
UV-Stabilized Grade: Essential for outdoor applications, this grade contains carbon black or other UV inhibitors to prevent the polymer chains from breaking down under sunlight.
Anti-Static/Conductive Grade: Used in explosive environments or electronic manufacturing where static discharge must be prevented. This grade is typically black due to the addition of carbon additives.
Filled Grades: Additives such as molybdenum disulfide (MoS2) or ceramic particles can be added to further reduce friction or increase the hardness of the surface for extreme abrasion scenarios.
Selecting the correct grade is vital for cost-efficiency. For example, a reprocessed grade might be perfectly suitable for a simple wear pad, whereas a high-speed conveyor component might require a specialized lubricant-filled virgin grade to minimize heat buildup.
The primary purpose of cross-linking in UHMWPE is to create chemical bonds between the long polymer chains, which significantly improves the material's resistance to "creep" (deformation under load) and enhances its performance in high-temperature or high-stress environments.
Standard UHMWPE is a thermoplastic, meaning its chains are held together by physical entanglements and Van der Waals forces. Cross-linking changes this by using radiation (gamma or electron beam) or chemical agents to create covalent bonds between the chains. This transforms the material into a more "networked" structure.
This process is particularly critical in the medical industry for joint replacements, but in industrial settings, it is used to improve the abrasion resistance of an uhmwpe sheet even further. Cross-linked UHMWPE can handle higher pressure-velocity (PV) limits, making it suitable for bearings that operate under heavier loads without deforming.
Furthermore, cross-linking improves the material's resistance to environmental stress cracking. While UHMWPE is already chemically robust, cross-linking ensures that the material remains stable even when exposed to harsh industrial solvents at elevated temperatures. It effectively raises the functional "ceiling" of what the material can achieve in the most extreme engineering contexts.
The most effective methods for joining UHMWPE include mechanical fastening with recessed bolts and thermal butt-welding, as the material's low surface energy and high chemical resistance make it nearly impossible to bond with standard industrial adhesives.
Because nothing sticks to UHMWPE, traditional gluing is rarely successful. For large-scale installations, such as lining a chute or a truck bed, mechanical fastening is the industry standard. This involves using "weld-on" studs or countersunk bolts. The bolts must be recessed below the surface of the uhmwpe sheet to prevent them from interfering with the flow of material or becoming a wear point themselves.
Thermal welding is another option, though it requires precision. Butt-welding involves heating the ends of two sheets and pressing them together under controlled pressure. Because UHMWPE does not "melt" like other plastics (it reaches a transparent, gel-like state), the welding process requires longer soak times and specific cooling cycles to ensure the molecular chains have time to interdiffuse across the interface.
Extrusion welding can also be used for non-structural joints, where a rod of compatible material is melted into a prepared groove between two sheets. However, for most heavy-duty applications, a combination of tight-tolerance machining and mechanical anchoring remains the most reliable method for ensuring the liner stays in place under extreme vibration and impact.
Surface finishes for UHMWPE range from standard "as-pressed" matte finishes to highly polished or textured surfaces achieved through precision CNC machining, planing, or specialized molding plates.
The most common finish is the "Planed" finish. Since sheets are produced via compression molding, they often undergo a planing process to ensure a uniform thickness across the entire uhmwpe sheet. This leaves a clean, slightly matte surface that is ideal for most industrial applications. For applications requiring even lower friction, the material can be buffed or polished, though its naturally waxy surface already provides excellent slip.
Textured finishes are also possible:
Knurled or Embossed: Used when a slight amount of grip is needed on the surface, often for pedestrian walkways or specialized grip pads.
Precision Machined: Using CNC routers, UHMWPE can be machined to very tight tolerances with a smooth surface finish (typically 32-64 micro-inches).
Skived: Very thin films or tapes are produced by skiving (shaving) a rotating cylinder of UHMWPE, resulting in a smooth, continuous surface.
It is important to note that because UHMWPE has a high thermal expansion coefficient, machining must be done with sharp tools and high feed rates to prevent heat buildup, which can cause the material to smear or lose dimensional accuracy.
